Standard Domestic Ramp 6 mtr x 1.2 mtr
Part # RAMP-0527
 F27 kiln dried 150 x 50 Hardwood frame
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.
Including aluminium hinges both ends.
The hardwood timber we normally use is F27 Queensland Blackbutt, kiln dried with penciled edeges.

Available in stages
Hinges and hardware only (no timber)
Build it yourself kit
Fully Built

A4-0527d Timber ramp 6 mtr x 1.2
# 7020 Hinge detail shore and pontoon end
# 7019 Ramp hinge plate detail<
Aluminium hinge bracket<
Aluminium hinge ramp plate detail<

Superseeded drawings
A4-2949 - Shore End Hinge Detail
A4-2724 - Ramp Hinge Detail Stainless

Material List

1 x Hinge plate for pontoon end Part # PLATE-7020
1 x Hinge plate for seawall end Part # PLATE-7020
8 x Hinge side plate for ramp Part # PLATE -7019
4 x M20 x 180mm HEX HD BOLT 304 Stainless steel PART # BOLT-2822
4 x M20 Nyloc nuts 304 Stainless steel PART # NUT-2823
8 x M20 x 37mm ROUND FLAT Washer 304 Stainless steel Part # WASHER-3193
4 x Nylon hinge sleeves Part # SLEEVE-3322
16 x Nylon hinge spacer washers 50 x 27 x 10mm Part # WASHER-2746

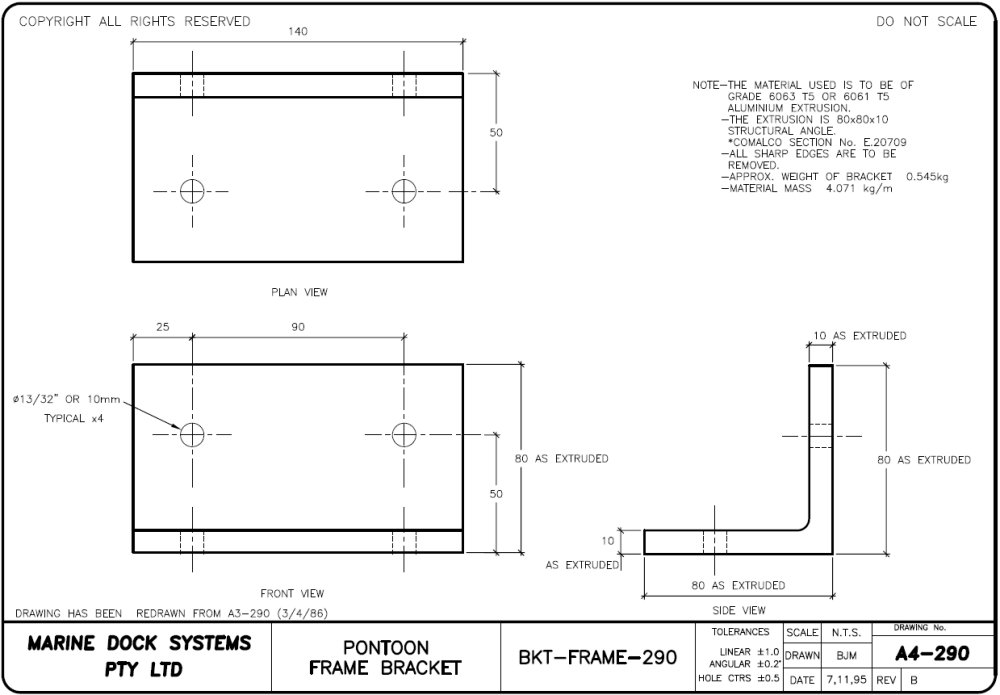

8 x Aluminium Frame Bracket 80x80 angle 140mm - Part # BKT-FRAME-290
16 x 3/8" x 2-1/2" inch UNC HEX HD BOLT 304 Stainless steel - Part # BOLT-3240
16 x 3/8" x 3" inch UNC HEX HD BOLT 304 304 Stainless steel - Part # BOLT-370
24 x 3/8" x 3-1/2" inch UNC HEX HD BOLT 304 Stainless steel - Part # BOLT-737
56 x 3/8" NYLOC Nut 304 Stainless steel - Part # NUT-371
112 x 3/8" X 1" ROUND FLAT Washer 304 Stainless steel - Part # WASHER-372
160 x 14G x 75mm Bugle batten head Stainless steel decking screws - Part # SCREW-1140
1 x Tube anti seize compound (apply to Stainless steels bolt threads - Part # ANTI-792
2 x Litres Decking oil
